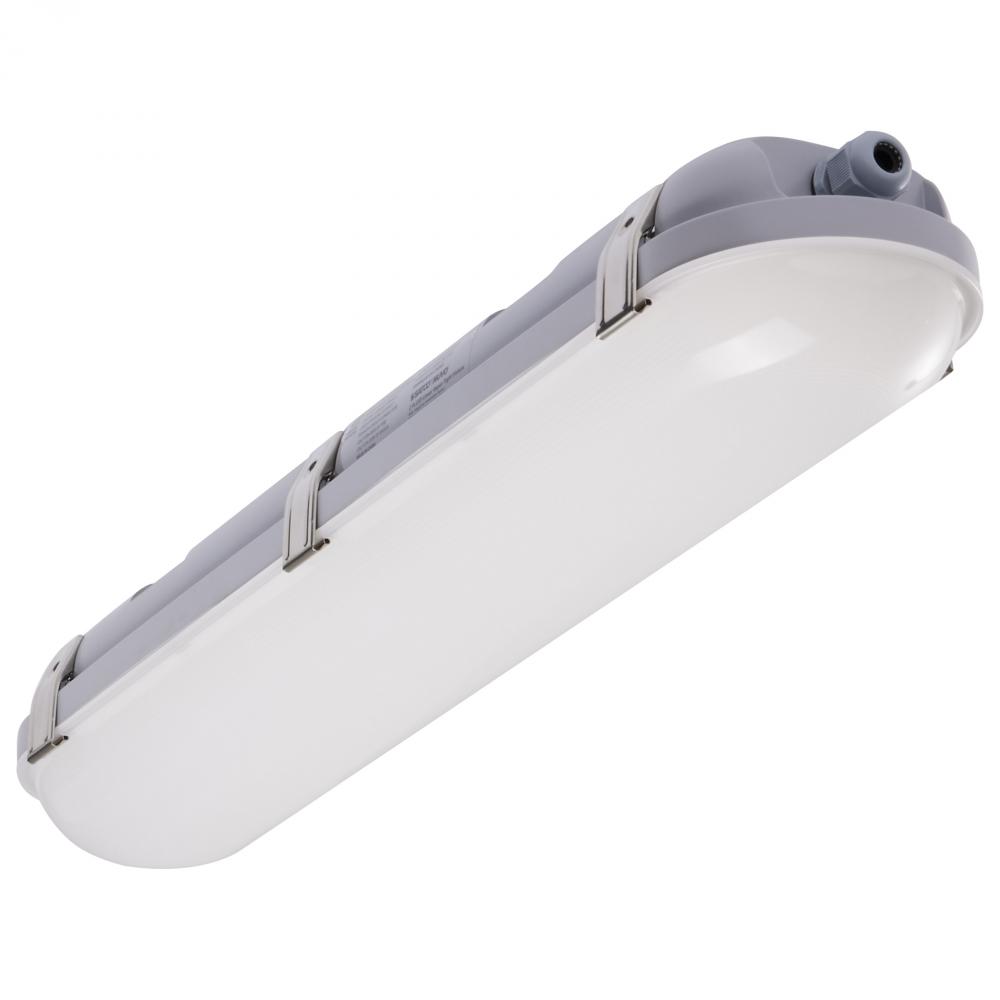

20 Watt LED 2 Foot Linear Vapor Proof Fixture; Emergency Battery; Integrated Microwave Sensor; (ADA6F)

Image may not reflect selected features
No Image
Available
20 Watt LED 2 Foot Linear Vapor Proof Fixture; Emergency Battery; Integrated Microwave Sensor;
additional image
BASE PRICE:
$
141
95
/ / 1
($141.95 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
ADA6F
Dimensions:
Height: 3.54"
Width: 4.84"
Gray
Availability:
  • Manufacturer has 204 items available.
Recommended Items
Description
Details
Downloads
20 Watt LED 2 Foot Linear Vapor Proof Fixture; Emergency Battery; Integrated Microwave Sensor; 3K/4K/5K CCT Selectable; 120-347 Range Voltage
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Option:
LED
Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Additional Info:
90 Minute Battery Backup Runtime
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
3.74
Each Length:
25.2
Each Width:
5.12
Length:
23.62
Lumens:
2164L-2505L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.167-0.058A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
LiFePO4
Beam Angle:
120
CCT Selectable:
Yes
CEC:
T20 SBCS Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V; Integrated Sensor
DLC Classification:
Standard
DLC Primary Use:
Direct Linear Ambient Luminaires
Each Cube:
0.2793
Each Quantity:
1
Efficacy:
108.20/116.73/125.25 LPW
FCC Compliant:
Yes
Feature 1:
3 CCT Selectable
Feature 2:
2 foot
Feature 3:
Vapor Proof with Emergency Backup & Microwave Sensor Model
Feature 4:
120-347 Voltage
Feature 5:
Durable, Gray Polycarbonate Material
Feature 6:
IP65 & IK08 Rated
Feature 7:
Wet Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
Gray
Fixture shape:
Linear
Flicker Free:
No
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
Yes
HID Equiv:
50W
Impact Rating (IK):
IK08
Incandescent Equivalent:
125W
Includes:
Mounting Hardware
Indoor Outdoor:
Indoor and Outdoor
IOT Enabled:
No
IP Rating:
IP65
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:
The SATCO NUVO 65-838 2 foot Vapor Proof LED fixture provides efficiency, reliability, and emergency readiness. Operating at 20 watts with 3 CCT selectable options, it offers adaptable lighting performance. An integrated microwave sensor enables motion-bas
Material:
Polycarbonate (PC)
Mounting Procedure:
Ceiling/Wall
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Kraft Box
Photocell:
Integrated Microwave Sensor
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Sensor Type:
Microwave
Short Description:
2' VAPOR PROOF W/EM & SENSOR
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
No
Total Harmonic Distortion:
10.30%
Wattage Selectable:
No
Weight Lb.:
3.31
